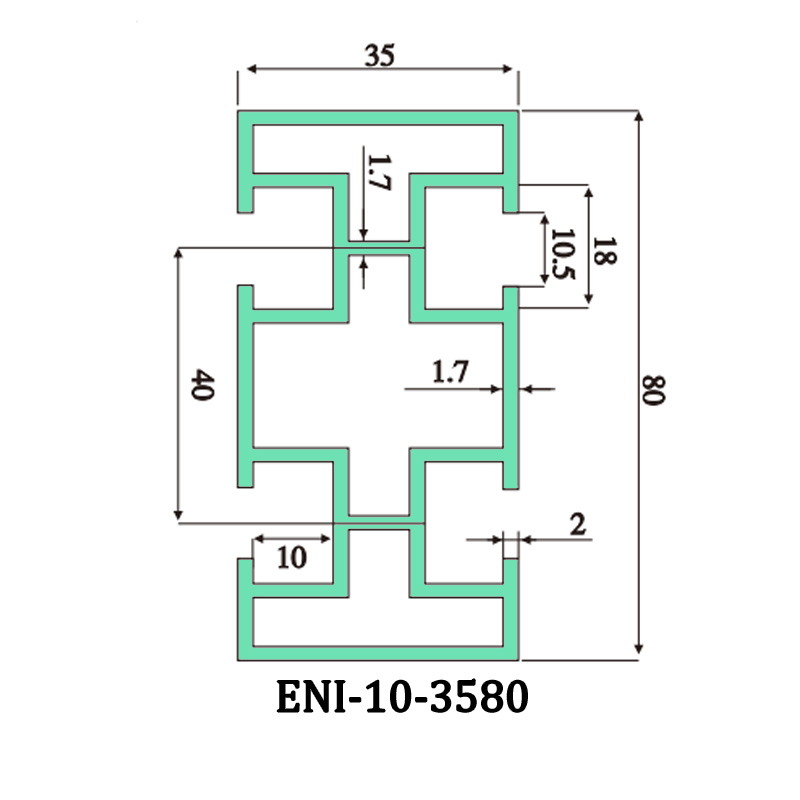

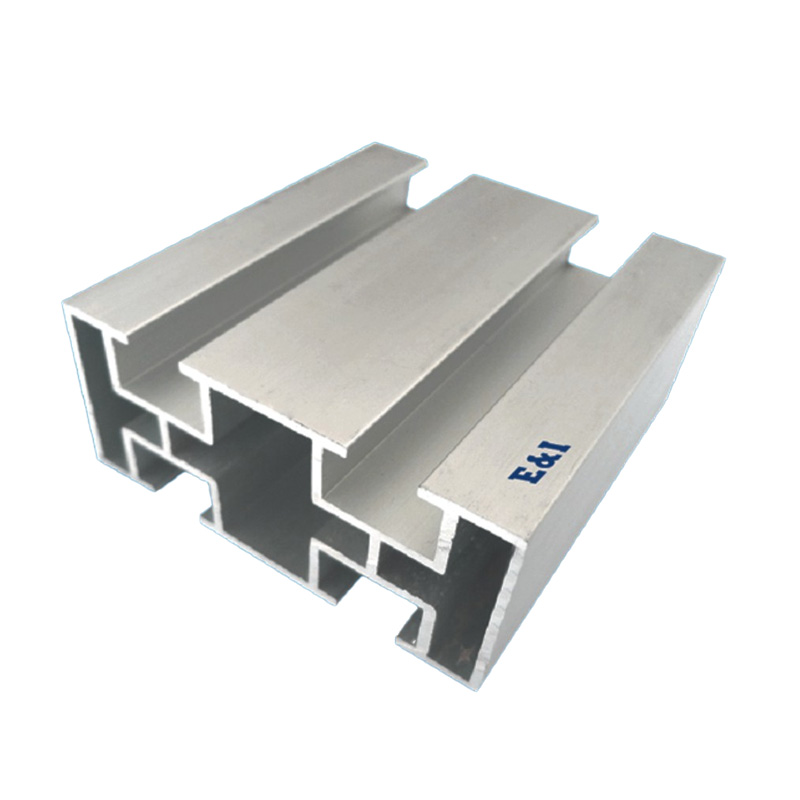

Using aluminum profile ENI-10-3580 to build small stairs and assembly line workbenches is a high-quality choice that takes into account both practicality and cost.
With its moderate cross-sectional size and excellent mechanical properties, this profile is ideal for the construction of small industrial facilities. When building small stairs, use ENI-10-3580 profiles as the main frame, and match them with professional corner codes, bolts and other accessories, which can be quickly assembled without welding. The inclination angle of the stairs can be adjusted as needed between 45 degrees and 60 degrees. The treads are made of aluminum alloy crocodile mouth punched plates with an anti-slip grade of R13, which can ensure traffic safety even in oily environments. The guardrails are made of the same series of profiles, with a height of not less than 1.05 meters, and the clear distance between vertical lines is controlled within 0.11 meters, building a strong safety defense line in all directions.
When building an assembly line workbench, the ENI-10-3580 profile can build a stable frame, and with an anti-static floor and professional connectors, the layout can be flexibly adjusted according to production needs. Its modular design makes disassembly, assembly and modification extremely convenient, and subsequent maintenance only requires replacement of accessories, significantly reducing costs. The anodized surface gives the profile excellent corrosion resistance, which can adapt to the complex environment of the workshop for a long time and provide reliable support for production operations.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-8-3030 |  |
 |
0.88kg/m | Ix:2.8cm4 Iy:2.8cm4 | Wx:1.87cm3 Wy:1.87cm3 |
| E&I-8-3030F |  |
 |
0.9kg/m | Ix:2.9cm4 Iy:2.9cm4 | Wx:1.93cm3 Wy:1.93cm3 |
| E&I-8-3030A |  |
 |
0.78kg/m | Ix:2.47cm4 Iy:2.47cm4 | Wx:1.65cm3 Wy:1.65cm3 |
| E&I-8-3030ME |  |
 |
0.91kg/m | Ix:2.75cm4 Iy:3.11cm4 | Wx:1.83cm3 Wy:2.07cm3 |
| E&I-8-3030M |  |
 |
0.9kg/m | Ix:3.0cm4 Iy:3.0cm4 | Wx:2.00cm3 Wy:2.00cm3 |
| ENI-6-3030G |  |
 |
- | - | - |
| E&I-8-3030R |  |
 |
0.88kg/m | Ix:2.56cm4 Iy:2.56cm4 | Wx:1.71cm3 Wy:1.71cm3 |
| E&I-8-3040 |  |
 |
1.42kg/m | Ix:6.80cm4 Iy:7.99cm4 | Wx:3.4cm3 Wy:5.33cm3 |
| E&I-8-3060 |  |
 |
1.61kg/m | Ix:5.36cm4 Iy:20.28cm4 | Wx:3.57cm3 Wy:6.76cm3 |
| ENI-6-3060C |  |
 |
- | - | - |
| E&I-8-3090 |  |
 |
2.39kg/m | Ix:7.92cm4 Iy:64.62cm4 | Wx:5.28cm3 Wy:14.36cm3 |
| E&I-8-30120 |  |
 |
3.40kg/m | Ix:11.91cm4 Iy:172.57cm4 | Wx:7.94cm3 Wy:28.76cm3 |
| E&I-8-30150 |  |
 |
7.40kg/m | Ix:23.79cm4 Iy:455.75cm4 | Wx:15.86cm3 Wy:60.77cm3 |
| E&I-8-30150A |  |
 |
3.56kg/m | Ix:12.92cm4 Iy:265.86cm4 | Wx:8.61cm3 Wy:35.45cm3 |
It features a moderate cross-sectional size and excellent mechanical properties, offering a high-quality build for industrial facilities that balances practical utility with cost efficiency.
No, stairs built using the ENI-10-3580 profile can be quickly and securely assembled without welding, using professional corner codes, bolts, and standard connection accessories.
The stair treads are designed with aluminum alloy crocodile mouth punched plates which carry an R13 anti-slip grade, ensuring high safety levels even in oily industrial environments.
The guardrails should use the same series of profiles and be built to a height of not less than 1.05 meters, with the clear distance between vertical lines kept within 0.11 meters.
The modular system allows for flexible layout adjustments, highly convenient assembly, disassembly, and modification. This ensures easy maintenance by simply replacing standard accessories to save overall costs.
The profiles feature an anodized surface treatment which provides outstanding corrosion resistance, allowing them to withstand harsh and complex workshop environments over long-term use.
