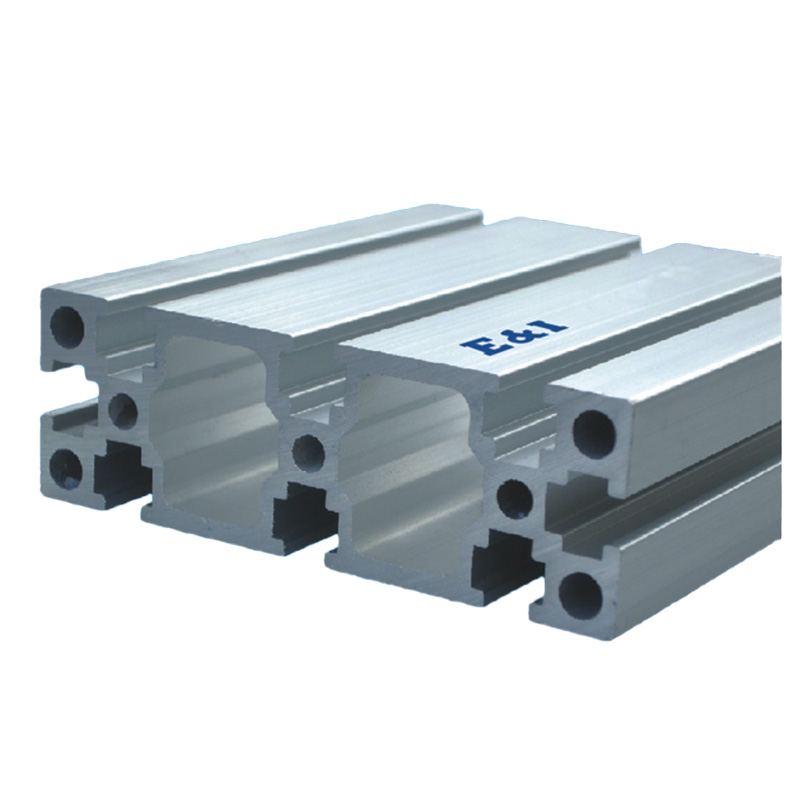

A fusion of practicality and beauty. ENI-6-3090A aluminum profile, with a length and width of 30mm × 90mm and a slot width of 6mm, provides a stable foundation for various frame designs.
It is necessary to clarify the usage scenarios and load requirements of the frame before design.
Assembly line operation desks, heavy equipment protective fences
Desktop shelves, display racks
The framework design needs to be based on realizing core functions, and then improve the aesthetics through detail optimization. Adopting a modular design concept, for example, the assembly line frame is divided into three key units:
Structural backbone providing stability and load-bearing capacity
Functional workspace for operational efficiency and ergonomics
Safety enclosure ensuring compliance and personnel protection
Each unit is connected through a standard interface. If a certain unit is damaged or needs adjustment, it can be disassembled and replaced separately without the need for overall disassembly.
ENI-6-3090A aluminum profile provides unlimited possibilities for frame design with its stable performance and flexible adaptability.
ENI-6-3090A aluminum profiles can become a reliable construction partner for any project.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-8-3030 |  |
 |
0.88kg/m | Ix:2.8cm4 Iy:2.8cm4 | Wx:1.87cm3 Wy:1.87cm3 |
| E&I-8-3030F |  |
 |
0.9kg/m | Ix:2.9cm4 Iy:2.9cm4 | Wx:1.93cm3 Wy:1.93cm3 |
| E&I-8-3030A |  |
 |
0.78kg/m | Ix:2.47cm4 Iy:2.47cm4 | Wx:1.65cm3 Wy:1.65cm3 |
| E&I-8-3030ME |  |
 |
0.91kg/m | Ix:2.75cm4 Iy:3.11cm4 | Wx:1.83cm3 Wy:2.07cm3 |
| E&I-8-3030M |  |
 |
0.9kg/m | Ix:3.0cm4 Iy:3.0cm4 | Wx:2.00cm3 Wy:2.00cm3 |
| ENI-6-3030G |  |
 |
- | - | - |
| E&I-8-3030R |  |
 |
0.88kg/m | Ix:2.56cm4 Iy:2.56cm4 | Wx:1.71cm3 Wy:1.71cm3 |
| E&I-8-3040 |  |
 |
1.42kg/m | Ix:6.80cm4 Iy:7.99cm4 | Wx:3.4cm3 Wy:5.33cm3 |
| E&I-8-3060 |  |
 |
1.61kg/m | Ix:5.36cm4 Iy:20.28cm4 | Wx:3.57cm3 Wy:6.76cm3 |
| ENI-6-3060C |  |
 |
- | - | - |
| E&I-8-3090 |  |
 |
2.39kg/m | Ix:7.92cm4 Iy:64.62cm4 | Wx:5.28cm3 Wy:14.36cm3 |
| E&I-8-30120 |  |
 |
3.40kg/m | Ix:11.91cm4 Iy:172.57cm4 | Wx:7.94cm3 Wy:28.76cm3 |
| E&I-8-30150 |  |
 |
7.40kg/m | Ix:23.79cm4 Iy:455.75cm4 | Wx:15.86cm3 Wy:60.77cm3 |
| E&I-8-30150A |  |
 |
3.56kg/m | Ix:12.92cm4 Iy:265.86cm4 | Wx:8.61cm3 Wy:35.45cm3 |

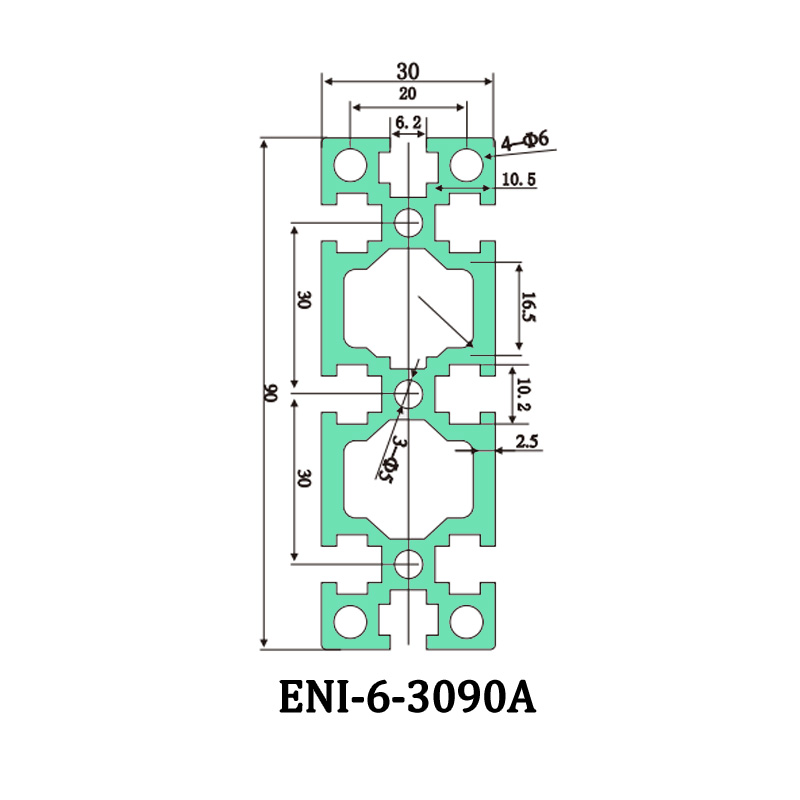

A1: The ENI-6-3090A aluminum profile features a section width of 30mm × 90mm and a slot width of 6mm, providing robust structural support and stability for various industrial and DIY frames.
A2: For industrial heavy-load scenarios, it is recommended to conduct professional mechanical calculations and place no fewer than 2 vertical columns per meter span to ensure structure stability.
A3: To enhance structural integrity and connection strength in demanding environments, we recommend utilizing thickened corner pieces combined with high-grade bolts and nuts.
A4: A modular setup divides the frame into distinct units (e.g., Support, Operating, Protection) connected by standard interfaces. This allows users to disassemble, replace, or repair individual modules without dismantling the entire structure.
A5: Yes. For light-load scenarios like desktop shelving or display setups, you can simplify the frame configuration and use fewer profiles to effectively lower weight and hardware costs.
A6: Absolutely. Due to its flexibility, stable structural properties, and modular characteristics, the profile is an ideal construction material for home workshops and creative DIY custom designs.
