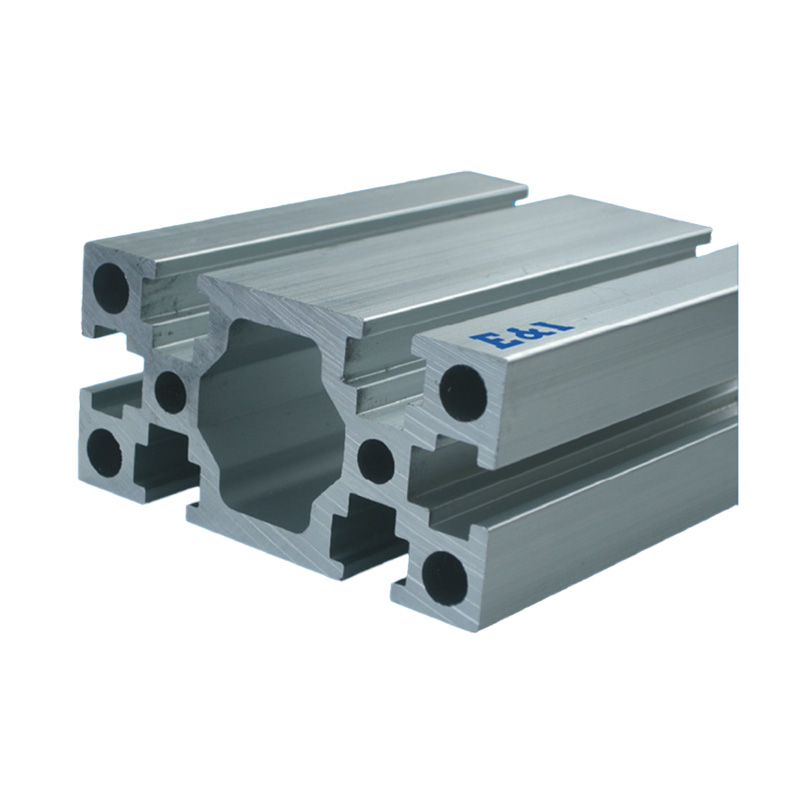

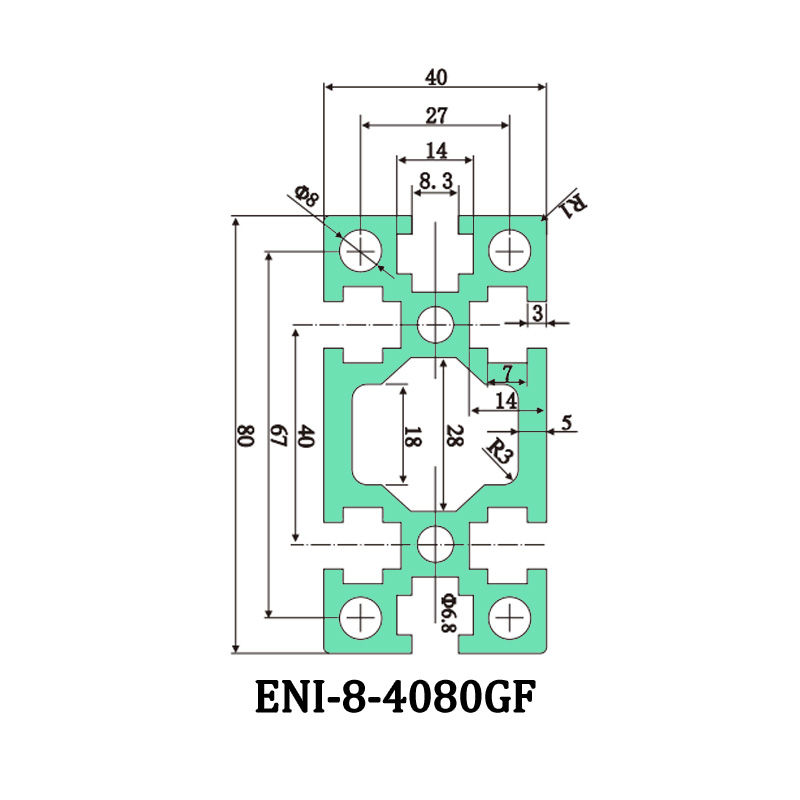

With its precise specifications, ENI-8-4080GF aluminum profiles have become the core framework for building assembly line workbenches and are widely adaptable to various production scenarios. As the main frame of the assembly line operation table, it can be seamlessly connected with conveyor lines, double-speed chains and other equipment to firmly support the assembly line operation process. Its T-slot design allows for quick installation of guide rails, clamps and other accessories, achieving a modular layout of workstations for easy later adjustment and expansion.
In workshop workbench applications, this profile often appears in the form of a column bracket, paired with a stainless steel tabletop to meet the processing needs of heavy workpieces, or an anti-static wooden board is used to adapt to the assembly scene of electronic components. The acrylic baffle is fixed in the profile groove through battens or bolts, which can isolate dust and noise without affecting the operating sight. The bottom joint shoe feet can flexibly adjust the height to ensure that the workbench remains level on uneven ground, effectively improving operational stability.
From electronic assembly lines to machining workshops, ENI-8-4080GF aluminum profiles have the characteristics of both load-bearing and flexibility, making them an ideal choice for efficient construction of work platforms in modern production.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-6-4040 |  |
 |
1.25kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040F |  |
 |
1.81kg/m | Ix:11.23cm4 Iy:11.23cm4 | Wx:5.62cm3 Wy:5.62cm3 |
| E&I-8-4040GG |  |
 |
1.32kg/m | Ix:7.73cm4 Iy:7.73cm4 | Wx:3.87cm3 Wy:3.87cm3 |
| E&I-8-4040T |  |
 |
0.89kg/m | Ix:5.09cm4 Iy:5.09cm4 | Wx:2.55cm3 Wy:2.55cm3 |
| E&I-8-4040LC |  |
 |
1.13kg/m | Ix:6.37cm4 Iy:6.37cm4 | Wx:3.18cm3 Wy:3.18cm3 |
| E&I-8-4040W |  |
 |
1.33kg/m | Ix:7.82cm4 Iy:7.82cm4 | Wx:3.91cm3 Wy:3.91cm3 |
| E&I-8-4040B |  |
 |
1.64kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040LD |  |
 |
1.05kg/m | Ix:6.21cm4 Iy:6.21cm4 | Wx:3.11cm3 Wy:3.11cm3 |
| E&I-8-4040C |  |
 |
1.29kg/m | Ix:7.32cm4 Iy:7.32cm4 | Wx:3.66cm3 Wy:3.66cm3 |
| E&I-8-4040D |  |
 |
1.85kg/m | Ix:9.98cm4 Iy:9.98cm4 | Wx:4.99cm3 Wy:4.99cm3 |
| E&I-8-4040E |  |
 |
1.67kg/m | Ix:8.96cm4 Iy:8.96cm4 | Wx:4.48cm3 Wy:4.48cm3 |
| E&I-8-4040EE |  |
 |
1.65kg/m | Ix:8.63cm4 Iy:8.96cm4 | Wx:4.32cm3 Wy:4.48cm3 |
| E&I-10-4040H |  |
 |
1.51kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040R |  |
 |
1.50kg/m | Ix:7.10cm4 Iy:7.10cm4 | Wx:3.55cm3 Wy:3.55cm3 |
| E&I-10-4060H |  |
 |
2.27kg/m | Ix:13.33cm4 Iy:27.69cm4 | Wx:6.67cm3 Wy:9.23cm3 |
| E&I-8-4080GA |  |
 |
2.31kg/m | Ix:14.41cm4 Iy:54.58cm4 | Wx:7.21cm3 Wy:13.65cm3 |
| E&I-8-4080C |  |
 |
2.22kg/m | Ix:13.72cm4 Iy:52.30cm4 | Wx:6.86cm3 Wy:13.08cm3 |
| E&I-8-4080M |  |
 |
2.28kg/m | Ix:13.99cm4 Iy:52.91cm4 | Wx:7.00cm3 Wy:13.23cm3 |
| E&I-8-4080F |  |
 |
3.30kg/m | Ix:19.66cm4 Iy:79.30cm4 | Wx:9.83cm3 Wy:19.83cm3 |
| E&I-10-4080H |  |
 |
2.64kg/m | Ix:16.14cm4 Iy:61.71cm4 | Wx:8.07cm3 Wy:15.43cm3 |
| E&I-8-4080 |  |
 |
2.94kg/m | Ix:16.48cm4 Iy:65.91cm4 | Wx:8.24cm3 Wy:16.48cm3 |
| E&I-8-4080I |  |
 |
3.26kg/m | Ix:19.11cm4 Iy:73.31cm4 | Wx:9.56cm3 Wy:18.33cm3 |
| E&I-8-40120 |  |
 |
4.28kg/m | Ix:25.52cm4 Iy:219.79cm4 | Wx:12.76cm3 Wy:36.63cm3 |
| E&I-8-40120E |  |
 |
4.65kg/m | Ix:25.96cm4 Iy:238.31cm4 | Wx:12.98cm3 Wy:39.71cm3 |
| E&I-8-40160 |  |
 |
6.23kg/m | Ix:39.83cm4 Iy:559.92cm4 | Wx:19.92cm3 Wy:69.99cm3 |
| E&I-8-40160B |  |
 |
5.24kg/m | Ix:31.92cm4 Iy:457.75cm4 | Wx:15.96cm3 Wy:57.22cm3 |
