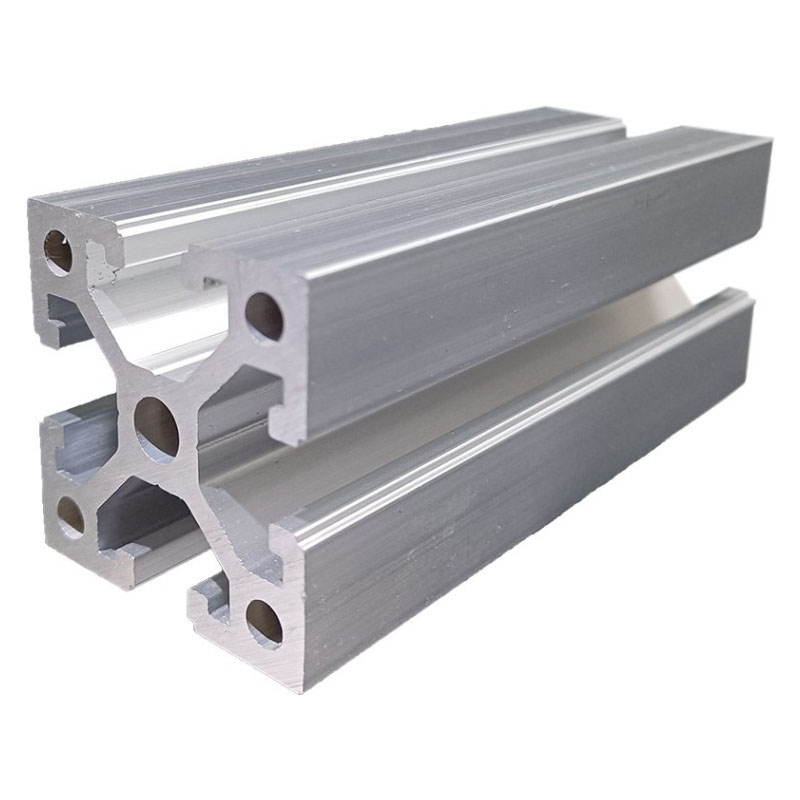

E&I-8-4040D is an industrial aluminum profile with excellent high strength, with a groove width of 8mm and a specification of 40mm*40mm. It is designed for industrial needs of high precision and high stability. Its surface is anodized, which makes it have excellent oxidation resistance and corrosion resistance, suitable for use in various complex industrial environments. This industrial aluminum profile has a high load-bearing capacity and impact resistance, and is very suitable for use as an industrial structure with high structural strength requirements, such as automation equipment brackets and mechanical manufacturing frames.

The modular design of E&I-8-4040D makes installation and disassembly very easy, and the structure can be flexibly adjusted according to project requirements, reducing the cost of transformation and maintenance. This model has a complete range of accessories and supports a variety of structural accessories, which can efficiently build industrial architectures that meet different functional requirements. Whether it is a complex automation system or a mechanical manufacturing framework with high structural precision requirements, E&I-8-4040D can provide stable and reliable support and meet the needs of different types of industrial environments.

Compared with traditional materials, the lightweight design of E&I-8-4040D greatly reduces transportation and handling costs, and its environmentally friendly characteristics also meet the needs of sustainable development. The anodized surface is not only beautiful, but also effectively prevents scratches and the adhesion of pollutants, making it easy to keep clean for a long time. As a widely used industrial aluminum profile, E&I-8-4040D has become an ideal choice for high-demand industrial architecture and equipment support with its high strength, flexibility and reliability.

Model	Physical Drawing	Data Map	Unit Mass	Moment Of Inertia	Sectional Resistance Moment
E&I-6-4040			1.25kg/m	Ix:8.65cm4 Iy:8.65cm4	Wx:4.33cm3 Wy:4.33cm3
E&I-8-4040F			1.81kg/m	Ix:11.23cm4 Iy:11.23cm4	Wx:5.62cm3 Wy:5.62cm3
E&I-8-4040GG			1.32kg/m	Ix:7.73cm4 Iy:7.73cm4	Wx:3.87cm3 Wy:3.87cm3
E&I-8-4040T			0.89kg/m	Ix:5.09cm4 Iy:5.09cm4	Wx:2.55cm3 Wy:2.55cm3
E&I-8-4040LC			1.13kg/m	Ix:6.37cm4 Iy:6.37cm4	Wx:3.18cm3 Wy:3.18cm3
E&I-8-4040W			1.33kg/m	Ix:7.82cm4 Iy:7.82cm4	Wx:3.91cm3 Wy:3.91cm3
E&I-8-4040B			1.64kg/m	Ix:8.65cm4 Iy:8.65cm4	Wx:4.33cm3 Wy:4.33cm3
E&I-8-4040LD			1.05kg/m	Ix:6.21cm4 Iy:6.21cm4	Wx:3.11cm3 Wy:3.11cm3
E&I-8-4040C			1.29kg/m	Ix:7.32cm4 Iy:7.32cm4	Wx:3.66cm3 Wy:3.66cm3

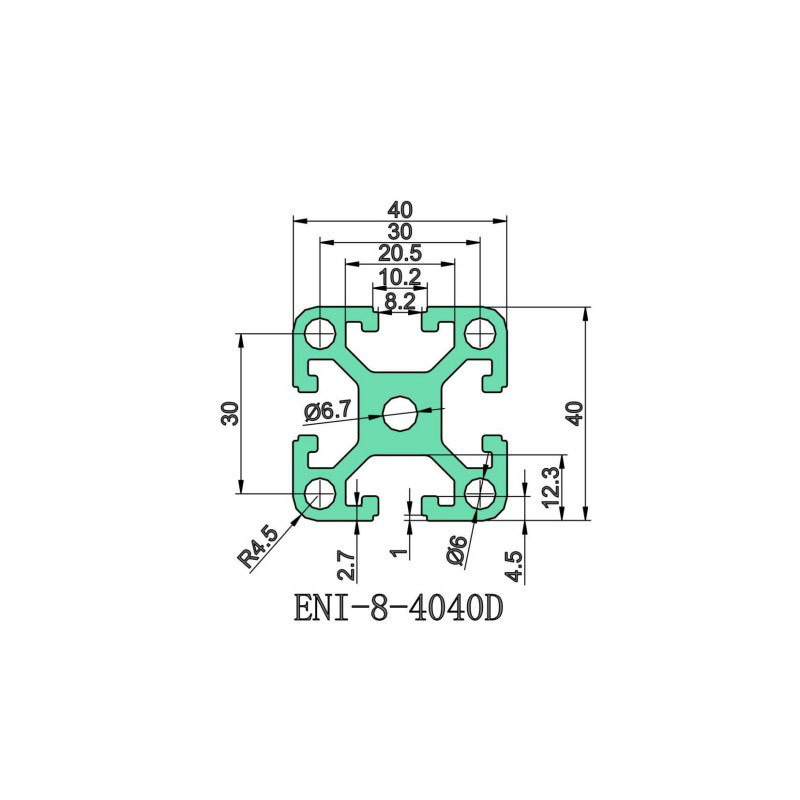

E&I-8-4040D			1.85kg/m	Ix:9.98cm4 Iy:9.98cm4	Wx:4.99cm3 Wy:4.99cm3
E&I-8-4040E			1.67kg/m	Ix:8.96cm4 Iy:8.96cm4	Wx:4.48cm3 Wy:4.48cm3
E&I-8-4040EE			1.65kg/m	Ix:8.63cm4 Iy:8.96cm4	Wx:4.32cm3 Wy:4.48cm3
E&I-10-4040H			1.51kg/m	Ix:8.65cm4 Iy:8.65cm4	Wx:4.33cm3 Wy:4.33cm3
E&I-8-4040R			1.50kg/m	Ix:7.10cm4 Iy:7.10cm4	Wx:3.55cm3 Wy:3.55cm3
E&I-10-4060H			2.27kg/m	Ix:13.33cm4 Iy:27.69cm4	Wx:6.67cm3 Wy:9.23cm3
E&I-8-4080GA			2.31kg/m	Ix:14.41cm4 Iy:54.58cm4	Wx:7.21cm3 Wy:13.65cm3
E&I-8-4080C			2.22kg/m	Ix:13.72cm4 Iy:52.30cm4	Wx:6.86cm3 Wy:13.08cm3
E&I-8-4080M			2.28kg/m	Ix:13.99cm4 Iy:52.91cm4	Wx:7.00cm3 Wy:13.23cm3
E&I-8-4080F			3.30kg/m	Ix:19.66cm4 Iy:79.30cm4	Wx:9.83cm3 Wy:19.83cm3
E&I-10-4080H			2.64kg/m	Ix:16.14cm4 Iy:61.71cm4	Wx:8.07cm3 Wy:15.43cm3
E&I-8-4080			2.94kg/m	Ix:16.48cm4 Iy:65.91cm4	Wx:8.24cm3 Wy:16.48cm3
E&I-8-4080I			3.26kg/m	Ix:19.11cm4 Iy:73.31cm4	Wx:9.56cm3 Wy:18.33cm3
E&I-8-40120			4.28kg/m	Ix:25.52cm4 Iy:219.79cm4	Wx:12.76cm3 Wy:36.63cm3
E&I-8-40120E			4.65kg/m	Ix:25.96cm4 Iy:238.31cm4	Wx:12.98cm3 Wy:39.71cm3
E&I-8-40160			6.23kg/m	Ix:39.83cm4 Iy:559.92cm4	Wx:19.92cm3 Wy:69.99cm3
E&I-8-40160B			5.24kg/m	Ix:31.92cm4 Iy:457.75cm4	Wx:15.96cm3 Wy:57.22cm3
