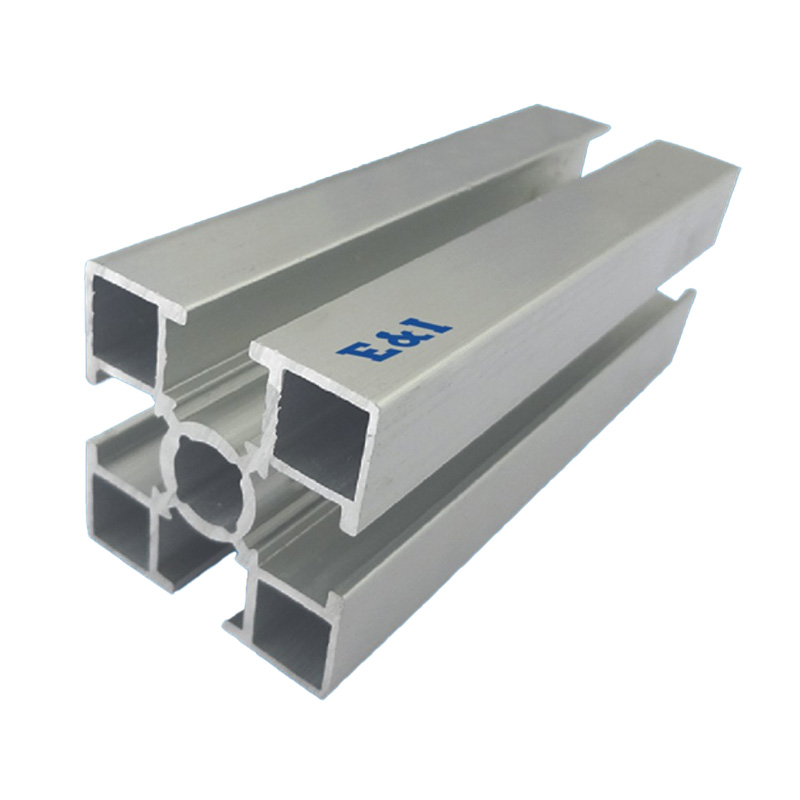

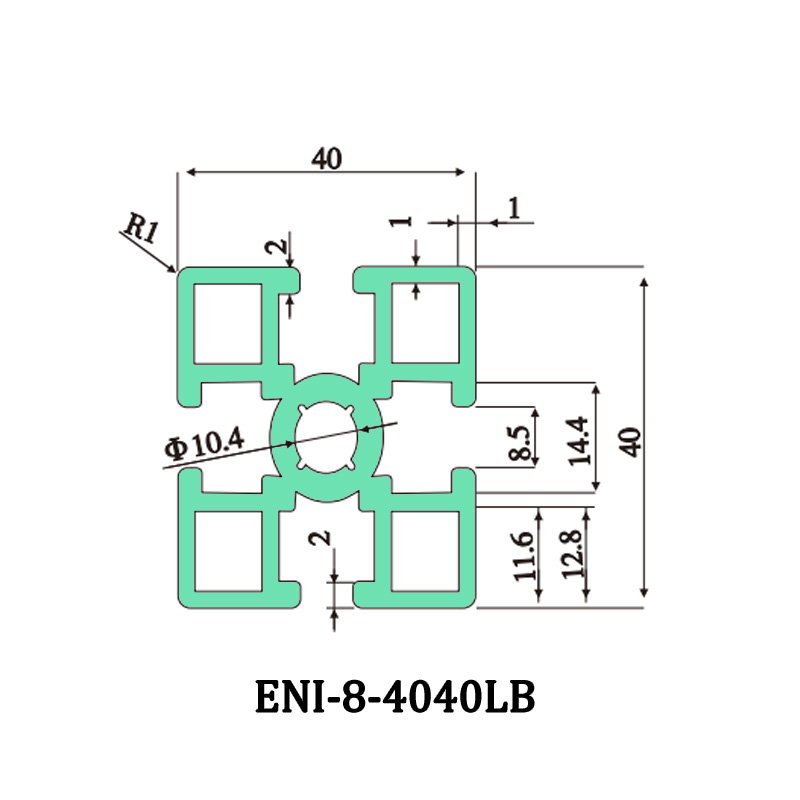

With its excellent mechanical properties and adaptability, the ENI-8-4040LB aluminum profile has become an ideal choice for the construction of automated machinery and equipment, assembly line conveyor belts, elevators, dispensing machines, testing equipment, shelves and other structures. It is especially widely used in the electronic machinery industry and clean rooms and other scenarios with strict environmental and precision requirements.
For customization of aluminum profile frames such as ENI-8-4040LB, preliminary on-site measurement is a key link. Accurate on-site data collection can effectively avoid adaptation problems caused by dimensional deviations during post-processing or installation, ensuring a perfect fit between the frame, equipment, and site.
Different industries have their own regulatory requirements for aluminum profile frames. Although there is no absolutely unified fixed value, there is a clear standard size range.
| Industry | Frame Type | Key Consideration |
|---|---|---|
| Electronics Industry | Clean Room Frame | Anti-static requirements & clean area layout specifications |
| Logistics & Warehousing | Shelf Frame | Floor height & span optimization within load-bearing standards |
Customization according to the industry standard size range can not only ensure the practicality and safety of the frame, but also improve the overall production and operation efficiency.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-6-4040 |  |
 |
1.25kg/m | Ix:8.65cm4 Iy:8.65cm4 |
Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040F |  |
 |
1.81kg/m | Ix:11.23cm4 Iy:11.23cm4 |
Wx:5.62cm3 Wy:5.62cm3 |
| E&I-8-4040GG |  |
 |
1.32kg/m | Ix:7.73cm4 Iy:7.73cm4 |
Wx:3.87cm3 Wy:3.87cm3 |
| E&I-8-4040T |  |
 |
0.89kg/m | Ix:5.09cm4 Iy:5.09cm4 |
Wx:2.55cm3 Wy:2.55cm3 |
| E&I-8-4040LC |  |
 |
1.13kg/m | Ix:6.37cm4 Iy:6.37cm4 |
Wx:3.18cm3 Wy:3.18cm3 |
| E&I-8-4040W |  |
 |
1.33kg/m | Ix:7.82cm4 Iy:7.82cm4 |
Wx:3.91cm3 Wy:3.91cm3 |
| E&I-8-4040B |  |
 |
1.64kg/m | Ix:8.65cm4 Iy:8.65cm4 |
Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040LD |  |
 |
1.05kg/m | Ix:6.21cm4 Iy:6.21cm4 |
Wx:3.11cm3 Wy:3.11cm3 |
| E&I-8-4040C |  |
 |
1.29kg/m | Ix:7.32cm4 Iy:7.32cm4 |
Wx:3.66cm3 Wy:3.66cm3 |
| E&I-8-4040D |  |
 |
1.85kg/m | Ix:9.98cm4 Iy:9.98cm4 |
Wx:4.99cm3 Wy:4.99cm3 |
| E&I-8-4040E |  |
 |
1.67kg/m | Ix:8.96cm4 Iy:8.96cm4 |
Wx:4.48cm3 Wy:4.48cm3 |
| E&I-8-4040EE |  |
 |
1.65kg/m | Ix:8.63cm4 Iy:8.96cm4 |
Wx:4.32cm3 Wy:4.48cm3 |
| E&I-10-4040H |  |
 |
1.51kg/m | Ix:8.65cm4 Iy:8.65cm4 |
Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040R |  |
 |
1.50kg/m | Ix:7.10cm4 Iy:7.10cm4 |
Wx:3.55cm3 Wy:3.55cm3 |
| E&I-10-4060H |  |
 |
2.27kg/m | Ix:13.33cm4 Iy:27.69cm4 |
Wx:6.67cm3 Wy:9.23cm3 |
| E&I-8-4080GA |  |
 |
2.31kg/m | Ix:14.41cm4 Iy:54.58cm4 |
Wx:7.21cm3 Wy:13.65cm3 |
| E&I-8-4080C |  |
 |
2.22kg/m | Ix:13.72cm4 Iy:52.30cm4 |
Wx:6.86cm3 Wy:13.08cm3 |
| E&I-8-4080M |  |
 |
2.28kg/m | Ix:13.99cm4 Iy:52.91cm4 |
Wx:7.00cm3 Wy:13.23cm3 |
| E&I-8-4080F |  |
 |
3.30kg/m | Ix:19.66cm4 Iy:79.30cm4 |
Wx:9.83cm3 Wy:19.83cm3 |
| E&I-10-4080H |  |
 |
2.64kg/m | Ix:16.14cm4 Iy:61.71cm4 |
Wx:8.07cm3 Wy:15.43cm3 |
| E&I-8-4080 |  |
 |
2.94kg/m | Ix:16.48cm4 Iy:65.91cm4 |
Wx:8.24cm3 Wy:16.48cm3 |
| E&I-8-4080I |  |
 |
3.26kg/m | Ix:19.11cm4 Iy:73.31cm4 |
Wx:9.56cm3 Wy:18.33cm3 |
| E&I-8-40120 |  |
 |
4.28kg/m | Ix:25.52cm4 Iy:219.79cm4 |
Wx:12.76cm3 Wy:36.63cm3 |
| E&I-8-40120E |  |
 |
4.65kg/m | Ix:25.96cm4 Iy:238.31cm4 |
Wx:12.98cm3 Wy:39.71cm3 |
| E&I-8-40160 |  |
 |
6.23kg/m | Ix:39.83cm4 Iy:559.92cm4 |
Wx:19.92cm3 Wy:69.99cm3 |
| E&I-8-40160B |  |
 |
5.24kg/m | Ix:31.92cm4 Iy:457.75cm4 |
Wx:15.96cm3 Wy:57.22cm3 |
