| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-6-1530 |  |
 |
0.67kg/m | Ix:0.7cm4 Iy:1.47cm4 |
Wx:0.93cm3 Wy:0.98cm3 |
| E&I-6-1560 |  |
 |
1.29kg/m | Ix:1.21cm4 Iy:12.44cm4 |
Wx:1.61cm3 Wy:4.15cm3 |
| E&I-8-1640 |  |
 |
1.18kg/m | Ix:1.14cm4 Iy:7.17cm4 |
Wx:1.43cm3 Wy:3.59cm3 |
| E&I-6-1818 |  |
 |
0.45kg/m | Ix:0.43cm4 Iy:0.67cm4 |
Wx:0.47cm3 Wy:0.74cm3 |

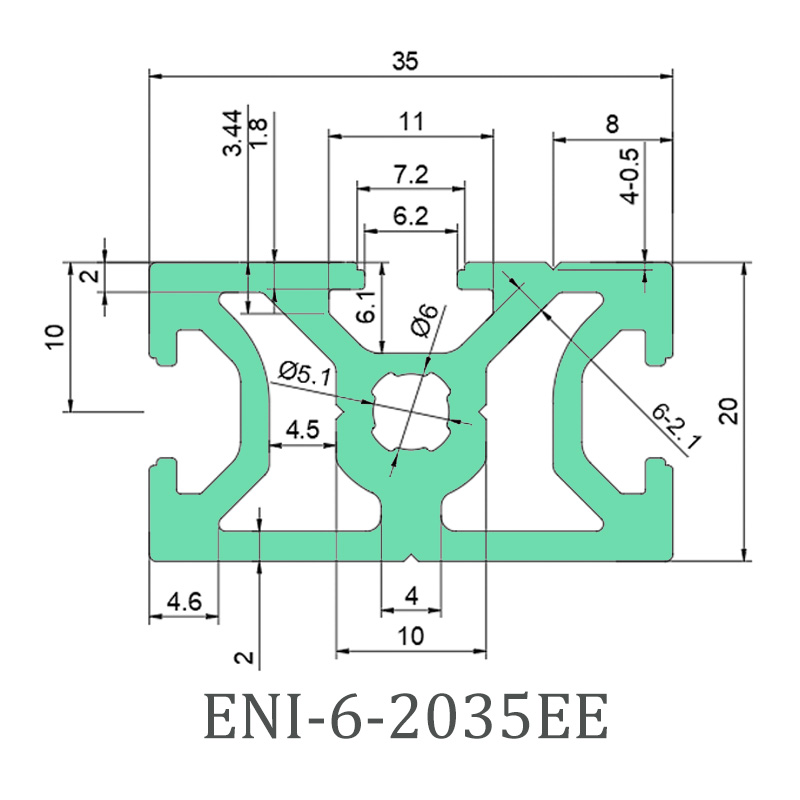

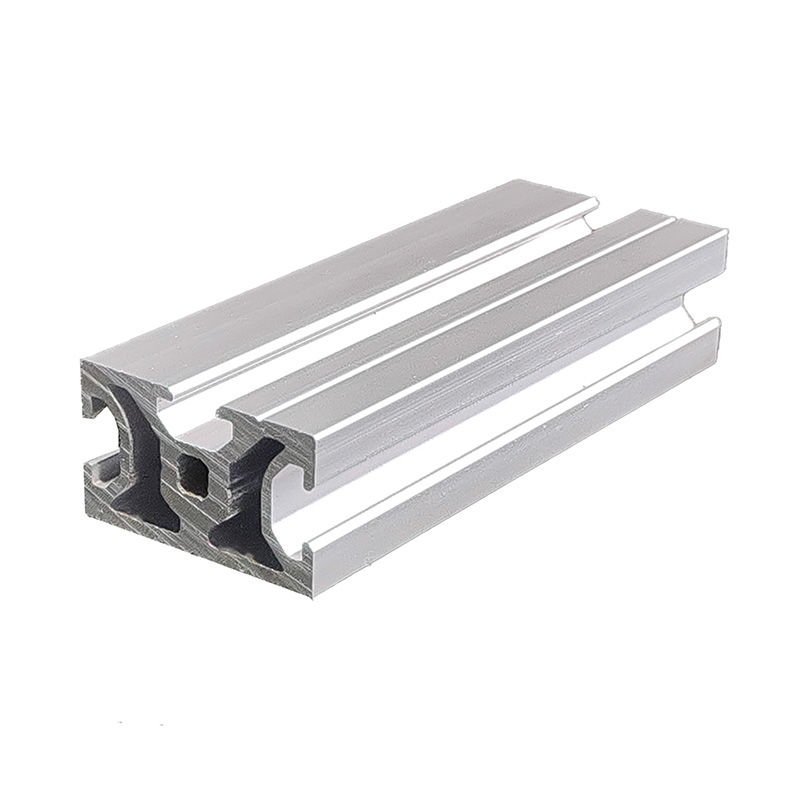

Customize an exclusive work desk that meets modern office needs. ENI-6-2035EE industrial aluminum profile is an excellent choice that combines strength and appearance. The specifications of this profile meet the lightweight needs of office furniture. With solid wood countertops and acrylic side panels, it can not only meet the load-bearing requirements of daily office work, but also create a simple and neat modern office style.
A high-precision special cutting machine for aluminum profiles is used to complete the blanking. With the stable performance of the equipment, the length cutting error is controlled within a very small range, and the cutting section is smooth and burr-free without additional polishing — laying a solid foundation for subsequent splicing installation.
The connection process of the frame assembly is strictly designed according to the customized requirements: the vertical joints of the profiles are pre-processed and drilled accurately, and hexagonal socket screws are used for fixation. This connection method does not require additional external accessories, and the surface of the frame is cleaner and simpler, which meets the simple needs of the office desk.
Special brackets with matching bolts and nuts lock the wooden tabletop to the aluminum frame securely.
Contact positions between profile and wooden board are tapped to further enhance connection strength.
Avoids table shaking and shifting after long-term use through multi-point locking.
After the frame is assembled, a custom-sized acrylic plate is embedded on the side, which can be used as a side fence to prevent items from sliding down without blocking the light, maintaining the transparency of the office space.
End covers are installed on the cut ends of all profiles to cover the cut sections while preventing aluminum chips from scratching the user. The details are handled more thoughtfully.
This work desk made of ENI-6-2035EE industrial aluminum profiles has a simple assembly process, a stable and durable structure, and is lighter in weight than traditional solid wood desks. The position can be adjusted according to the office space, fully meeting the diverse needs of modern offices.
Industrial aluminum profiles offer a perfect balance of strength, lightweight design, and modern aesthetic. They are easy to assemble, highly customizable, and highly resistant to wear and corrosion compared to traditional wooden or steel frames.
High-precision cutting keeps errors to a minimum and provides burr-free cuts. This is vital to ensure perfect alignment at all joints, resulting in a solid, stable frame that requires no extra manual grinding.
By using internal hexagonal socket screws, the connections are made flush within pre-drilled holes. This eliminates the need for bulky external bracket joints, leaving the frame's outer surfaces clean, flat, and minimalist.
Yes. By using targeted tapping at the contact points and reinforcing the structure with right-angle brackets and multi-point locking mechanisms, the desk frame provides excellent load bearing capacity and is built to prevent shaking.
End covers seal off the exposed raw-cut edges of the aluminum profiles. They prevent dust accumulation inside the hollow channels, hide sharp edges, and protect users from accidental scratches.
