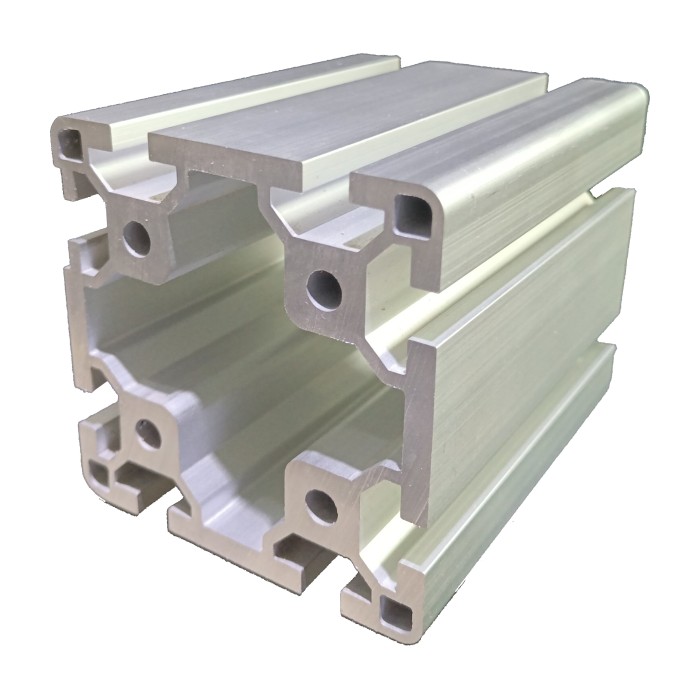

E&I-8-8080W T-slot aluminum profile, slot width 8mm, specification 80mm×80mm, with high strength and excellent corrosion resistance, suitable for use in high load and harsh environment. The profile is anodized, the surface has excellent corrosion resistance, and can provide long-term stable performance in high humidity and industrial pollution environment.
Its high strength and good fatigue resistance make E&I-8-8080W an ideal choice for automation equipment supports, heavy machinery supports and industrial fences.
The modular design allows users to quickly assemble and adjust according to actual needs, reducing installation time and costs.
Excellent thermal conductivity and structural stability — withstands large loads and temperature changes across automated assembly lines, equipment frames, and arc welding rooms.
In addition, E&I-8-8080W T-slot aluminum profile has excellent thermal conductivity and structural stability. It is suitable for scenes such as automated assembly lines, equipment frames, arc welding rooms, etc. It can withstand large loads and temperature changes. It is an ideal material for industrial automation and heavy equipment support.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-8-8840R |  |
 |
3.77kg/m | Ix:84.76cm4 Iy:85.09cm4 |
Wx:21.19cm3 Wy:21.27cm3 |
| E&I-8-8080K |  |
 |
3.66kg/m | Ix:88.04cm4 Iy:88.04cm4 |
Wx:22.01cm3 Wy:22.01cm3 |
| E&I-8-8080T |  |
 |
3.99kg/m | Ix:104.32cm4 Iy:104.32cm4 |
Wx:26.08cm3 Wy:26.08cm3 |
| E&I-8-8080 |  |
 |
4.82kg/m | Ix:122.77cm4 Iy:118.8cm4 |
Wx:30.69cm3 Wy:29.7cm3 |

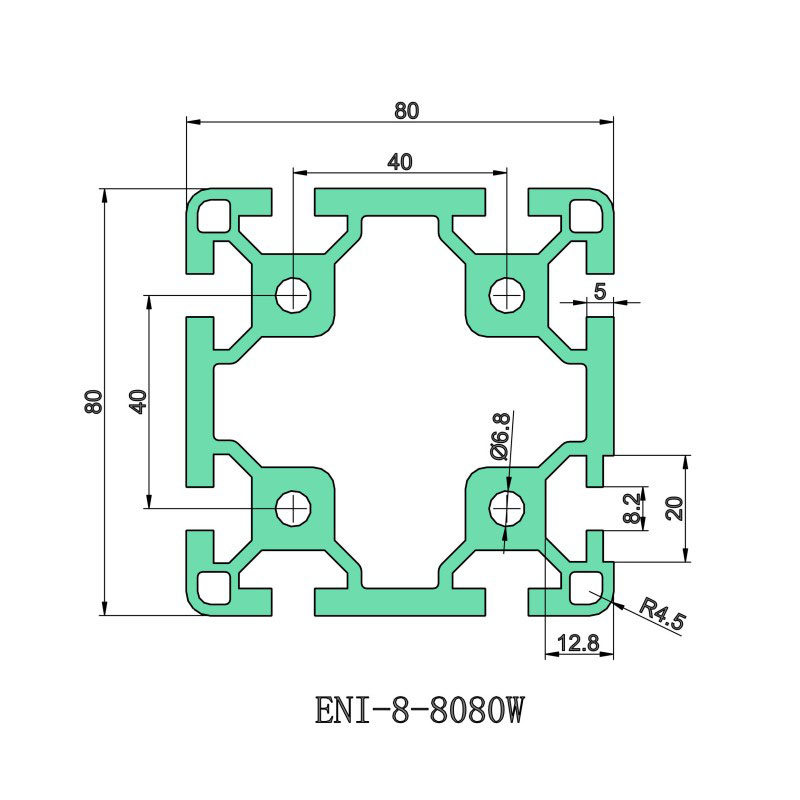

| E&I-8-8080W |  |
 |
5.66kg/m | Ix:147.13cm4 Iy:144.33cm4 |
Wx:36.78cm3 Wy:36.08cm3 |
| E&I-8-8080G |  |
 |
5.68kg/m | Ix:146.63cm4 Iy:154.96cm4 |
Wx:36.66cm3 Wy:38.74cm3 |
| E&I-10-8080H |  |
 |
4.25kg/m | Ix:109.92cm4 Iy:109.92cm4 |
Wx:27.48cm3 Wy:27.48cm3 |
| E&I-8-80120 |  |
 |
6.89kg/m | Ix:204.89cm4 Iy:443.57cm4 |
Wx:51.22cm3 Wy:73.93cm3 |
| E&I-8-80160 |  |
 |
9.09kg/m | Ix:238.24cm4 Iy:809.89cm4 |
Wx:59.56cm3 Wy:101.24cm3 |
| E&I-10-80160H |  |
 |
9.03kg/m | Ix:263.59cm4 Iy:918.18cm4 |
Wx:65.79cm3 Wy:114.77cm3 |
A1: The E&I-8-8080W is an industrial T-slot aluminum profile measuring 80mm × 80mm with a slot width of 8mm.
A2: Because it is anodized and has high strength with superior corrosion resistance, it is ideal for high-humidity, high-load, and harsh industrial environments.
A3: The modular design allows for rapid assembly and adjustment according to varying site requirements, which helps lower overall installation times and operational costs.
A4: Yes, the profile offers outstanding thermal conductivity and structural stability, allowing it to withstand extreme temperature fluctuations and large physical loads.
A5: It is widely used in automated assembly lines, heavy machinery supports, equipment frames, automation equipment supports, industrial fences, and arc welding rooms.
A6: The E&I-8-8080W model has a unit mass of 5.66 kg/m, offering an excellent strength-to-weight ratio for structural applications.
