EI T-slot aluminum profile E&I-8-8080G | High load bearing industrial frame | Mechanical bracket aluminum profile | Corrosion resistant aluminum Products, EI

E&I-8-8080G T-slot aluminum profile, slot width 8mm, specification 80mm×80mm, suitable for automation equipment brackets, industrial frames and workshop isolation, high strength and easy to install, strong corrosion resistance, suitable for a variety of industrial environments.

Send Inquiry

Product Description

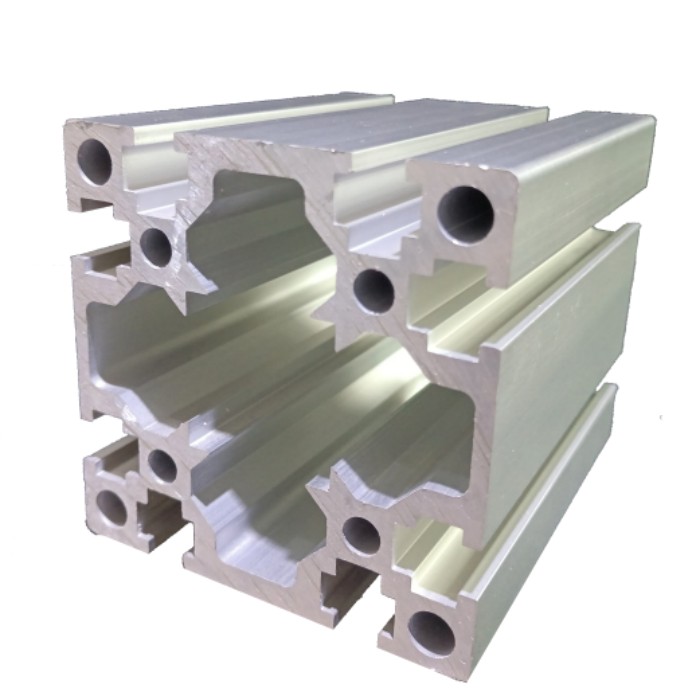

E&I-8-8080G T-slot aluminum profile has 8mm slot width and 80mm×80mm specifications, designed for industrial brackets and automation frame applications. The anodized surface is highly corrosion-resistant and suitable for long-term use in various complex environments to ensure the stability and safety of the structure.

This profile is suitable for mechanical brackets, equipment protection frames and industrial isolation. It is a high-strength aluminum profile with a stable structure. The modular design of E&I-8-8080G makes it easy to splice and install. The structure can be quickly adjusted according to actual needs, reducing installation time and cost.

Key Specifications

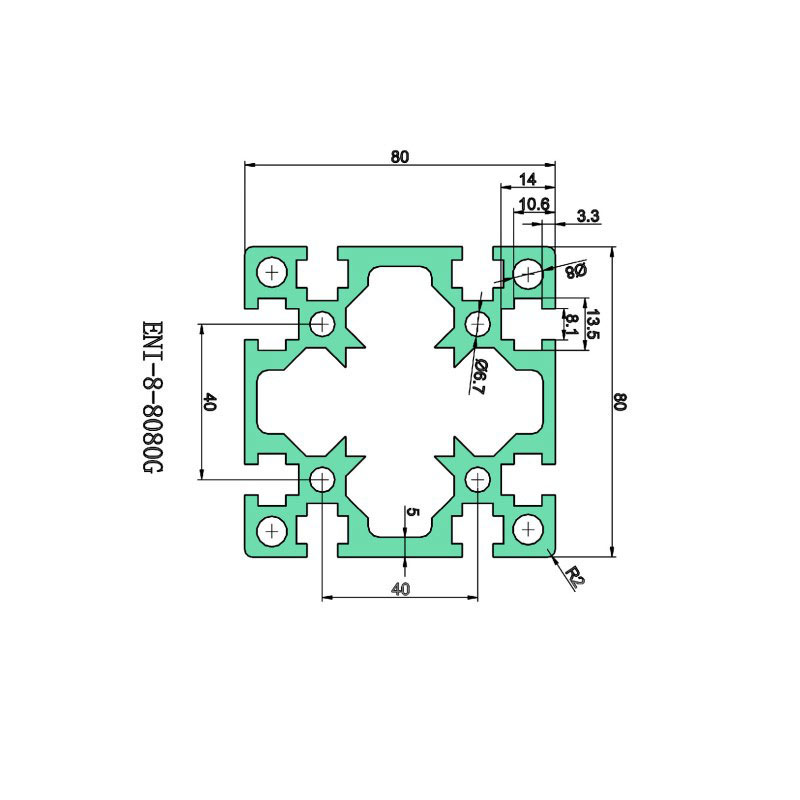

Slot Width: 8mm
Profile Size: 80mm × 80mm
Surface: Anodized
High Corrosion Resistance

Applications

Mechanical Brackets
Equipment Protection Frames
Industrial Isolation
Automation Frame Structures

Core Advantages

High-Strength Aluminum Material
Stable & Reliable Structure
Modular Design for Easy Assembly
Quick Structural Adjustment
Reduced Installation Time & Cost

Product Models & Technical Parameters

Model	Unit Mass	Moment Of Inertia	Sectional Resistance Moment
E&I-8-8840R	3.77kg/m	Ix:84.76cm4 Iy:85.09cm4	Wx:21.19cm3 Wy:21.27cm3
E&I-8-8080K	3.66kg/m	Ix:88.04cm4 Iy:88.04cm4	Wx:22.01cm3 Wy:22.01cm3
E&I-8-8080T	3.99kg/m	Ix:104.32cm4 Iy:104.32cm4	Wx:26.08cm3 Wy:26.08cm3
E&I-8-8080	4.82kg/m	Ix:122.77cm4 Iy:118.8cm4	Wx:30.69cm3 Wy:29.7cm3
E&I-8-8080W	5.66kg/m	Ix:147.13cm4 Iy:144.33cm4	Wx:36.78cm3 Wy:36.08cm3
E&I-8-8080G	5.68kg/m	Ix:146.63cm4 Iy:154.96cm4	Wx:36.66cm3 Wy:38.74cm3
E&I-10-8080H	4.25kg/m	Ix:109.92cm4 Iy:109.92cm4	Wx:27.48cm3 Wy:27.48cm3
E&I-8-80120	6.89kg/m	Ix:204.89cm4 Iy:443.57cm4	Wx:51.22cm3 Wy:73.93cm3
E&I-8-80160	9.09kg/m	Ix:238.24cm4 Iy:809.89cm4	Wx:59.56cm3 Wy:101.24cm3
E&I-10-80160H	9.03kg/m	Ix:263.59cm4 Iy:918.18cm4	Wx:65.79cm3 Wy:114.77cm3

Frequently Asked Questions (FAQ)

Q1: What are the primary dimensions and parameters of the E&I-8-8080G aluminum profile?

A1: The E&I-8-8080G profile has a cross-section specification of 80mm × 80mm with an 8mm slot width. It is specifically designed to meet the load-bearing requirements of industrial frames and automation support.

Q2: How does the surface treatment of these profiles protect against harsh environments?

A2: These profiles feature a premium anodized surface treatment. This specialized coating provides exceptional corrosion resistance, protecting the aluminum alloy from oxidation, moisture, and chemical exposure in complex industrial settings.

Q3: Can these profiles be easily modified or adjusted after initial assembly?

A3: Yes. The modular design of the E&I T-slot profiles allows for fast connection and structural adjustment. The frames can be quickly reconfigured or expanded according to on-site requirements without the need for extensive welding or machining.

Q4: What are the typical industrial applications of the 8080 series T-slot profiles?

A4: Typical applications include heavy mechanical brackets, equipment safety protection enclosures, industrial isolation partitions, and structural frames for automation machinery.

Q5: How does the structural strength vary between different 8080 profile models?

A5: Structural strength is determined by unit mass and the moment of inertia. For instance, the E&I-8-8080G has a unit mass of 5.68 kg/m with a high Moment of Inertia (Ix:146.63cm4, Iy:154.96cm4), offering significantly greater load capacity compared to lighter models like the E&I-8-8080K (3.66 kg/m).

Q6: What is the slot width configuration of the different models in the chart?

A6: The model numbers correspond to the slot configuration. Profiles prefixed with "E&I-8-" feature an 8mm slot width, whereas profiles prefixed with "E&I-10-" feature a wider 10mm slot width to accommodate heavier duty fasteners and accessories.
