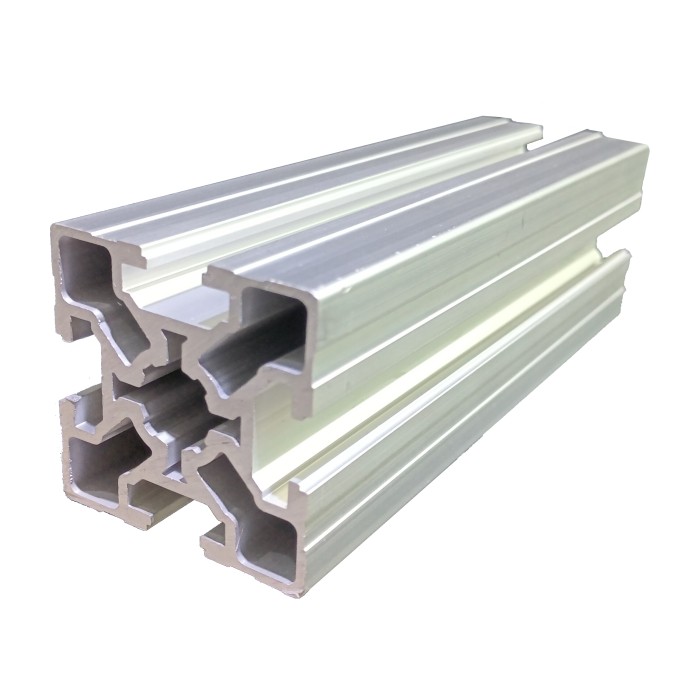

E&I-10-5050C T-slot aluminum profile, slot width 10mm, specification 50mm×50mm, selected high-precision aluminum, anodized, so that it has excellent corrosion resistance and fatigue resistance, suitable for automation equipment support, machinery manufacturing frame and workshop guardrail applications. E&I-10-5050C provides good stability and strong load-bearing capacity for the structural frame.
The modular design of this profile allows it to be flexibly assembled and disassembled according to project requirements, making it easy to quickly adjust the structure according to site conditions. Its excellent thermal conductivity and electrical insulation make it highly adaptable in industrial projects that require durable support. The easy processing characteristics of E&I-10-5050C mean that users can easily cut and assemble it to quickly complete the structure.
E&I-10-5050C is widely used in automation equipment frames, industrial design and engineering manufacturing. Its diverse assembly methods and good stability make this profile one of the best choices to meet a variety of engineering needs.
| Parameter | Details |
|---|---|
| Model | E&I-10-5050C |
| Slot Width | 10mm |
| Specification | 50mm × 50mm |
| Material | High-Precision Aluminum |
| Surface Treatment | Anodized |
| Key Properties | Corrosion Resistance, Fatigue Resistance, Thermal Conductivity, Electrical Insulation |
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-8-5050L |  |
 |
2.58kg/m | Ix:21.71cm4 Iy:21.71cm4 |
Wx:8.68cm3 Wy:8.68cm3 |
| E&I-8-5050W |  |
 |
2.96kg/m | Ix:25.78cm4 Iy:25.78cm4 |
Wx:10.31cm3 Wy:10.31cm3 |
| E&I-10-5050B |  |
 |
2.46kg/m | Ix:20.34cm4 Iy:20.34cm4 |
Wx:8.14cm3 Wy:8.14cm3 |

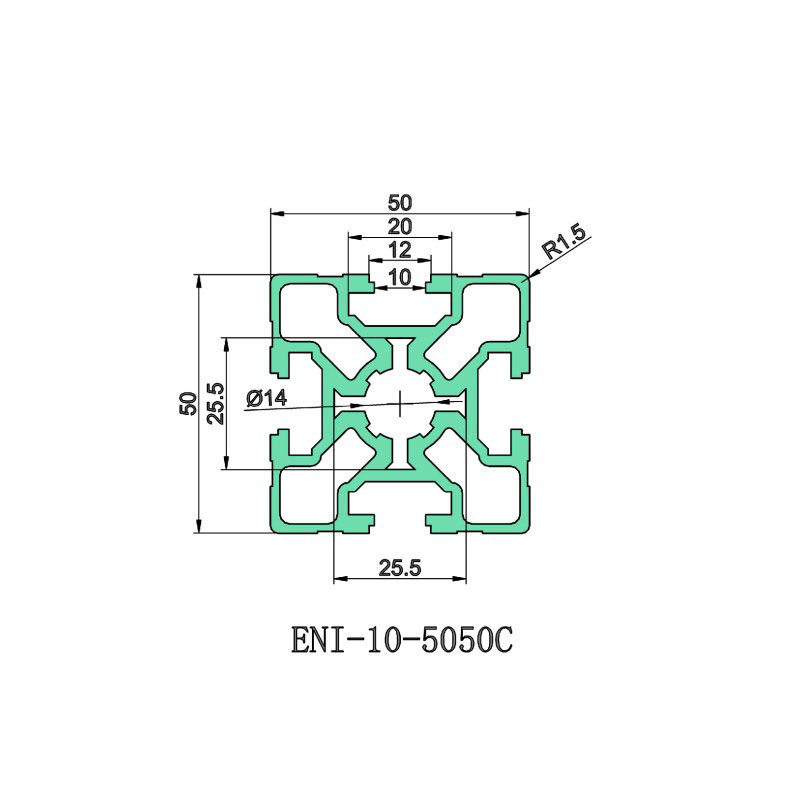

| E&I-10-5050C |  |
 |
2.58kg/m | Ix:21.71cm4 Iy:21.71cm4 |
Wx:8.68cm3 Wy:8.68cm3 |
| E&I-8-50100 |  |
 |
5.72kg/m | Ix:51.70cm4 Iy:192.29cm4 |
Wx:20.68cm3 Wy:38.46cm3 |
| E&I-10-50100LC |  |
 |
4.04kg/m | Ix:36.44cm4 Iy:153.93cm4 |
Wx:14.58cm3 Wy:30.79cm3 |
