1 / 2

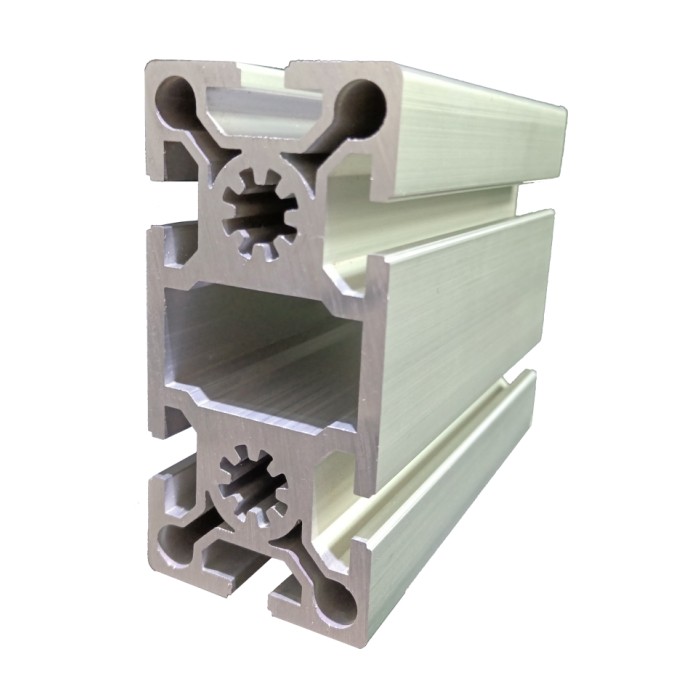

E&I-8-50100 T-slot aluminum profile, slot width 8mm, specification 50mm×100mm, selected high-quality aluminum alloy material, anodized to ensure its excellent corrosion resistance and fatigue resistance, very suitable for automation equipment support, industrial frame structure and other scenarios. E&I-8-50100 provides reliable support for industrial projects with its stable structure and flexible installation method.
The modular design of this profile allows for easy assembly and disassembly, making it suitable for automated assembly lines and industrial equipment frames that require frequent adjustments. It has good thermal conductivity and strong electrical insulation, ensuring excellent performance under high loads and complex environments. The diverse application options of E&I-8-50100 make it widely used in industrial manufacturing, electromechanical equipment, and clean shed structures.
Whether it is used for precision equipment frames or large-scale automated assembly line support, E&I-8-50100 can provide high-quality support solutions to meet the needs of modern industry for structural stability and durability.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-8-5050L |  |
 |
2.58kg/m | Ix:21.71cm4 Iy:21.71cm4 |
Wx:8.68cm3 Wy:8.68cm3 |
| E&I-8-5050W |  |
 |
2.96kg/m | Ix:25.78cm4 Iy:25.78cm4 |
Wx:10.31cm3 Wy:10.31cm3 |
| E&I-10-5050B |  |
 |
2.46kg/m | Ix:20.34cm4 Iy:20.34cm4 |
Wx:8.14cm3 Wy:8.14cm3 |
| E&I-10-5050C |  |
 |
2.58kg/m | Ix:21.71cm4 Iy:21.71cm4 |
Wx:8.68cm3 Wy:8.68cm3 |
| E&I-8-50100 | |
 |
5.72kg/m | Ix:51.70cm4 Iy:192.29cm4 |
Wx:20.68cm3 Wy:38.46cm3 |
| E&I-10-50100LC |  |
 |
4.04kg/m | Ix:36.44cm4 Iy:153.93cm4 |
Wx:14.58cm3 Wy:30.79cm3 |

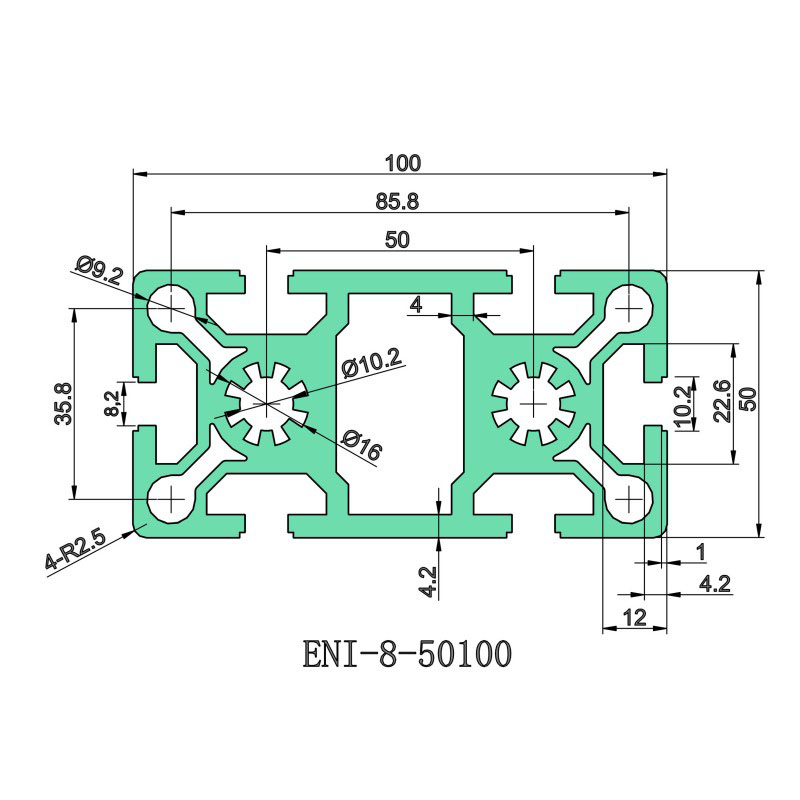

The E&I-8-50100 is a T-slot aluminum profile featuring a slot width of 8mm and a profile cross-section specification of 50mm × 100mm.
The profile is processed with an anodized surface treatment. This protects the aluminum alloy, ensuring excellent corrosion resistance and fatigue resistance under demanding working conditions.
The modular design enables straightforward assembly and disassembly. This flexibility makes it ideal for projects like automated assembly lines and equipment frames that require regular structural adjustments.
Yes, it features high structural stability, good thermal conductivity, and strong electrical insulation, allowing it to perform reliably even under high loads and complex ambient environments.
The E&I-8-50100 has a unit mass of 5.72 kg/m. Its moment of inertia is Ix: 51.70 cm⁴ and Iy: 192.29 cm⁴, providing outstanding structural strength.
