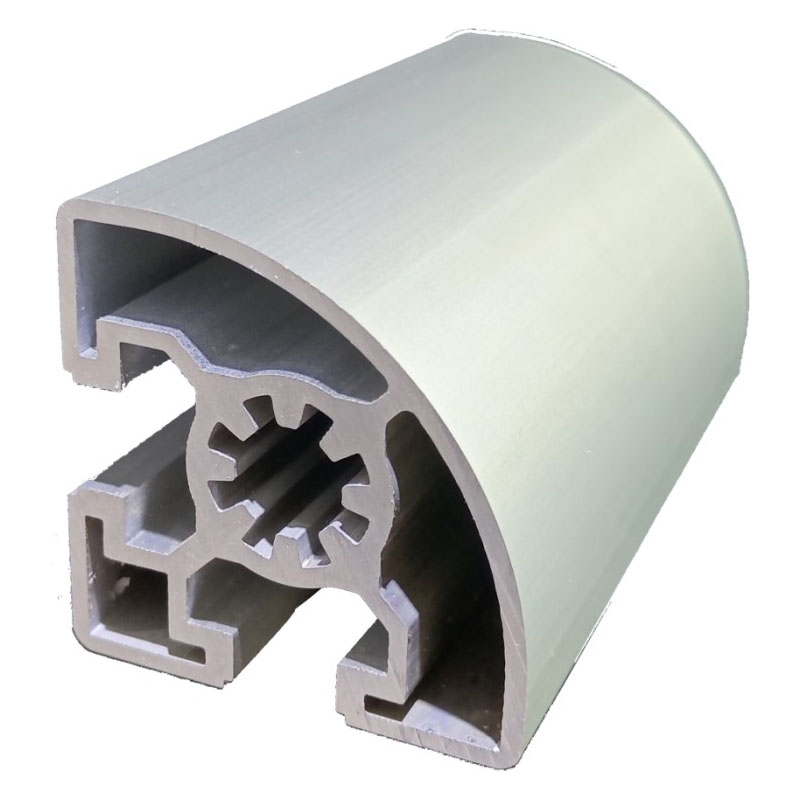

E&I-10-4545RQ T-slot aluminum profile, slot width 10mm, specification 45mm×45mm, specially designed as a quarter-circle corner, making it more flexible in structure, and effectively reducing stress concentration during the connection process, improving the stability of the joint part.
The profile is made of high-strength aluminum alloy material, anodized, not only has a smooth surface, but also has excellent corrosion resistance, can adapt to a variety of industrial environments, especially in harsh conditions can still maintain long-term stability.
The E&I-10-4545RQ profile is suitable for mechanical supports, automation equipment supports, precision engineering frames and other fields. It can carry large loads, provide reliable support and stable structural performance. Its modular design facilitates flexible combination and customization, and can quickly build equipment and frames that meet the needs. Due to its light weight and high strength, this profile can not only significantly reduce weight in industrial applications, but also improve the economy and efficiency of the system.
In addition, E&I-10-4545RQ profile has good thermal conductivity and fatigue resistance, and can maintain excellent performance under high load and high frequency operation. Whether in automated assembly lines, electromechanical equipment brackets, or industrial guardrails and exhibition structures, E&I-10-4545RQ can provide stable and reliable solutions to meet the various needs of modern industry for aluminum profiles.
Excellent heat dissipation properties maintain stable performance in high-temperature operating conditions.
Withstands high-frequency cyclic loads without degradation, ensuring long-term structural integrity.
Maintains reliable performance even in harsh environments, reducing maintenance costs over time.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-10-4545R |  |
 |
1.69kg/m | Ix:10.76cm4 Iy:10.76cm4 |
Wx:4.78cm3 Wy:4.78cm3 |
| E&I-10-4545RQ |  |
 |
1.60kg/m | Ix:9.99cm4 Iy:9.99cm4 |
Wx:4.44cm3 Wy:4.44cm3 |
| E&I-10-4545W |  |
 |
2.22kg/m | Ix:15.02cm4 Iy:15.14cm4 |
Wx:6.68cm3 Wy:6.72cm3 |
| E&I-10-4545L |  |
 |
1.51kg/m | Ix:10.85cm4 Iy:10.85cm4 |
Wx:4.82cm3 Wy:4.82cm3 |
| E&I-10-4545 |  |
 |
1.75kg/m | Ix:12.66cm4 Iy:12.66cm4 |
Wx:5.63cm3 Wy:5.63cm3 |
| E&I-10-4560 |  |
 |
2.43kg/m | Ix:17.00cm4 Iy:28.73cm4 |
Wx:7.6cm3 Wy:9.58cm3 |
| E&I-10-4590 |  |
 |
3.65kg/m | Ix:25.20cm4 Iy:107.46cm4 |
Wx:11.2cm3 Wy:23.88cm3 |
| E&I-10-4590W |  |
 |
3.92kg/m | Ix:28.94cm4 Iy:110.96cm4 |
Wx:12.86cm3 Wy:24.66cm3 |
The quarter-circle corner design provides greater structural flexibility and effectively minimizes stress concentration at connection joints, which significantly improves the overall stability of the frame assembly.

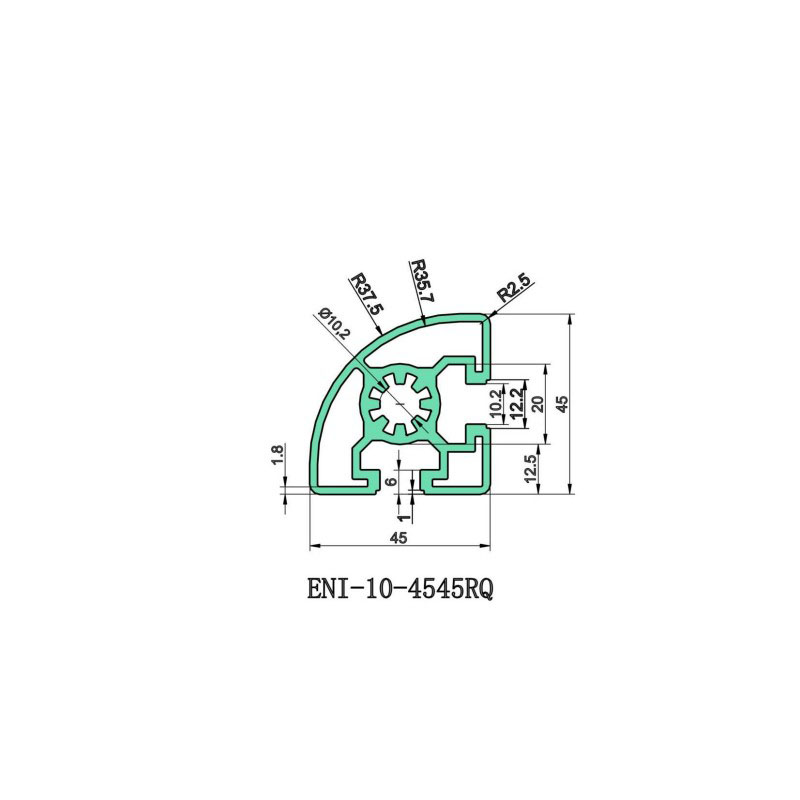

The E&I-10-4545RQ has a slot width of 10mm and outer cross-section specifications of 45mm x 45mm.
The anodized finish provides a smooth aesthetic appearance and delivers excellent corrosion resistance, allowing the profile to remain durable and stable even in harsh industrial environments.
This profile is ideal for mechanical supports, automation equipment frameworks, precision engineering structures, electromechanical brackets, industrial safety guardrails, and exhibition displays.
Yes, it features high fatigue resistance and excellent thermal conductivity, which allows the structural frame to withstand persistent cyclic loads and heat dissipation needs without loss of performance.
