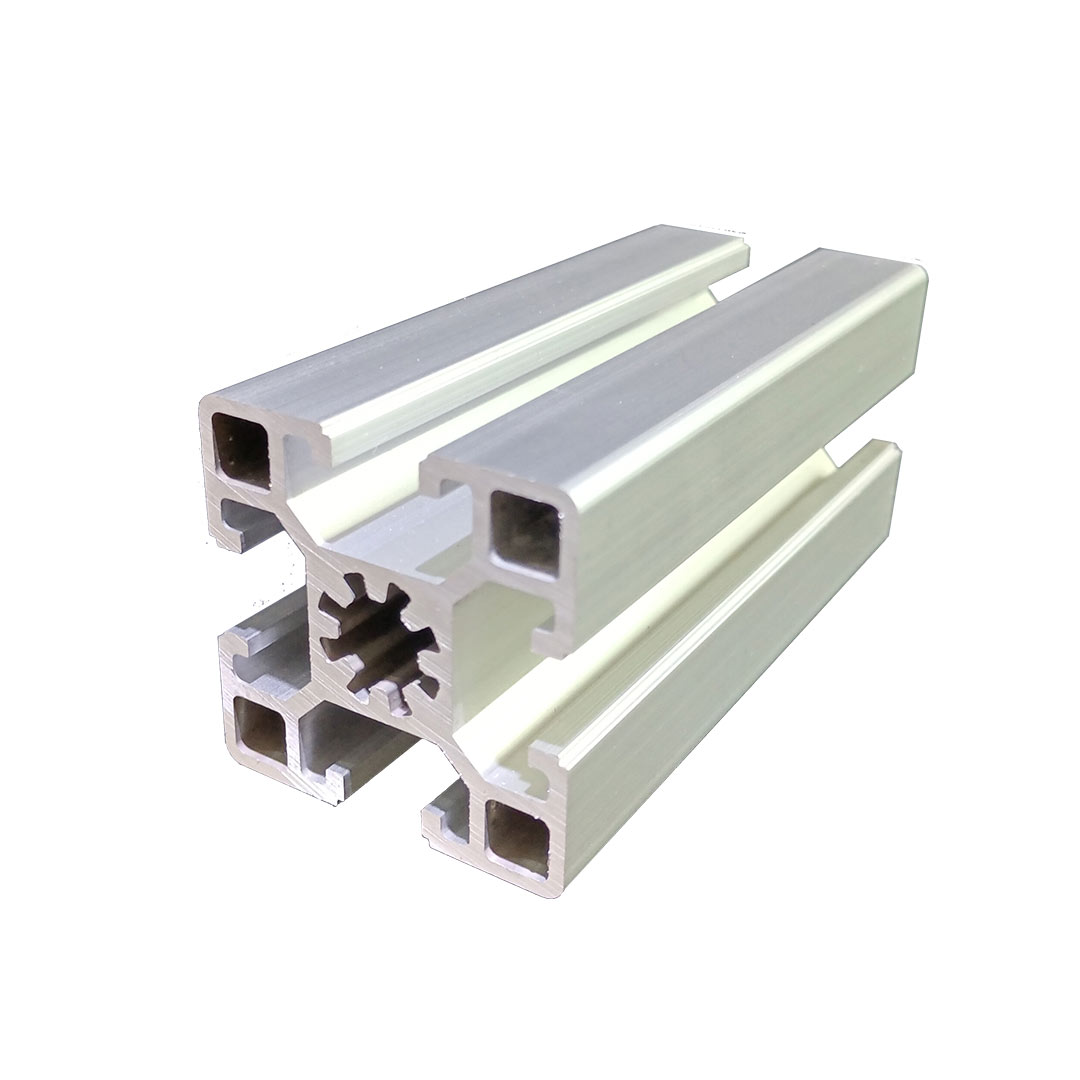

Industrial Aluminum Profile E&I-10-4545 is a high-performance material specifically designed for industrial applications. It is highly favored in modern manufacturing for its superior performance and extensive customization options. The surface of these aluminum profiles features advanced anodizing, providing a hard protective coating that enhances corrosion and weather resistance, along with an elegant appearance and diverse colors, ensuring they fit seamlessly into various design contexts while fulfilling functional needs.
With a slot width of 10mm, the E&I-10-4545 aluminum profiles offer outstanding load-bearing capacity and structural stability, suitable for a range of heavy-duty industrial settings such as machinery manufacturing, automation equipment, and electrical installations. This design also simplifies precise accessory installation and connections, enhancing the overall structure's reliability and durability.
The ability to customize E&I-10-4545 aluminum profiles is another key feature. Clients can tailor the length, shape, and specific technical specifications to their unique requirements, ensuring the final product is an exact match for their specific application. This flexibility significantly reduces the complexity and costs involved in the design and manufacturing phases.
Cost-effectiveness is a core competitive advantage of E&I-10-4545 aluminum profiles. Combining the lightweight, high strength, and easy-to-process qualities of aluminum with the aesthetic and durability enhancements of anodizing, the profile offers outstanding value for money, balancing competitive pricing with high quality, thus providing superior economic value to users.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-6-4040 |  |
 |
1.25kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040F |  |
 |
1.81kg/m | Ix:11.23cm4 Iy:11.23cm4 | Wx:5.62cm3 Wy:5.62cm3 |
| E&I-8-4040GG |  |
 |
1.32kg/m | Ix:7.73cm4 Iy:7.73cm4 | Wx:3.87cm3 Wy:3.87cm3 |
| E&I-8-4040T |  |
 |
0.89kg/m | Ix:5.09cm4 Iy:5.09cm4 | Wx:2.55cm3 Wy:2.55cm3 |
| E&I-8-4040LC |  |
 |
1.13kg/m | Ix:6.37cm4 Iy:6.37cm4 | Wx:3.18cm3 Wy:3.18cm3 |
| E&I-8-4040W |  |
 |
1.33kg/m | Ix:7.82cm4 Iy:7.82cm4 | Wx:3.91cm3 Wy:3.91cm3 |
| E&I-8-4040B |  |
 |
1.64kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040LD |  |
 |
1.05kg/m | Ix:6.21cm4 Iy:6.21cm4 | Wx:3.11cm3 Wy:3.11cm3 |
| E&I-8-4040C |  |
 |
1.29kg/m | Ix:7.32cm4 Iy:7.32cm4 | Wx:3.66cm3 Wy:3.66cm3 |
| E&I-8-4040D |  |
 |
1.85kg/m | Ix:9.98cm4 Iy:9.98cm4 | Wx:4.99cm3 Wy:4.99cm3 |
| E&I-8-4040E |  |
 |
1.67kg/m | Ix:8.96cm4 Iy:8.96cm4 | Wx:4.48cm3 Wy:4.48cm3 |
| E&I-8-4040EE |  |
 |
1.65kg/m | Ix:8.63cm4 Iy:8.96cm4 | Wx:4.32cm3 Wy:4.48cm3 |
| E&I-10-4040H |  |
 |
1.51kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040R |  |
 |
1.50kg/m | Ix:7.10cm4 Iy:7.10cm4 | Wx:3.55cm3 Wy:3.55cm3 |
| E&I-10-4060H |  |
 |
2.27kg/m | Ix:13.33cm4 Iy:27.69cm4 | Wx:6.67cm3 Wy:9.23cm3 |
| E&I-8-4080GA |  |
 |
2.31kg/m | Ix:14.41cm4 Iy:54.58cm4 | Wx:7.21cm3 Wy:13.65cm3 |
| E&I-8-4080C |  |
 |
2.22kg/m | Ix:13.72cm4 Iy:52.30cm4 | Wx:6.86cm3 Wy:13.08cm3 |
| E&I-8-4080M |  |
 |
2.28kg/m | Ix:13.99cm4 Iy:52.91cm4 | Wx:7.00cm3 Wy:13.23cm3 |
| E&I-8-4080F |  |
 |
3.30kg/m | Ix:19.66cm4 Iy:79.30cm4 | Wx:9.83cm3 Wy:19.83cm3 |
| E&I-10-4080H |  |
 |
2.64kg/m | Ix:16.14cm4 Iy:61.71cm4 | Wx:8.07cm3 Wy:15.43cm3 |
| E&I-8-4080 |  |
 |
2.94kg/m | Ix:16.48cm4 Iy:65.91cm4 | Wx:8.24cm3 Wy:16.48cm3 |
| E&I-8-4080I |  |
 |
3.26kg/m | Ix:19.11cm4 Iy:73.31cm4 | Wx:9.56cm3 Wy:18.33cm3 |
| E&I-8-40120 |  |
 |
4.28kg/m | Ix:25.52cm4 Iy:219.79cm4 | Wx:12.76cm3 Wy:36.63cm3 |
| E&I-8-40120E |  |
 |
4.65kg/m | Ix:25.96cm4 Iy:238.31cm4 | Wx:12.98cm3 Wy:39.71cm3 |
| E&I-8-40160 |  |
 |
6.23kg/m | Ix:39.83cm4 Iy:559.92cm4 | Wx:19.92cm3 Wy:69.99cm3 |
| E&I-8-40160B |  |
 |
5.24kg/m | Ix:31.92cm4 Iy:457.75cm4 | Wx:15.96cm3 Wy:57.22cm3 |
A1: Due to its outstanding load-bearing capacity and structural stability, the E&I-10-4545 profile is ideal for heavy-duty industrial environments, including machinery manufacturing, automation equipment, and electrical installations.
A2: The 10mm slot width is specifically engineered to handle heavier loads while simplifying the installation and connection of precise structural accessories, enhancing the overall durability of the installation.
A3: Yes. We offer full customization flexibility. Clients can tailor the length, shape, and specific technical specifications of the profiles to match their project requirements perfectly.
A4: The profiles undergo advanced anodizing treatments, which create a hard protective layer. This layer dramatically improves corrosion and weather resistance while providing a professional, clean finish.
A5: It combines the lightweight properties and high strength of aluminum with an easy-to-process design. Coupled with the longevity offered by its anodized surface, it provides exceptional long-term value for money.
A6: Yes, a comprehensive range of models (such as E&I-6-4040, E&I-8-4080, and E&I-8-40160 series) with different physical dimensions, weights, and moments of inertia are available to suit various load and span demands.
