Slot Width: 10mm | Specification: 45mm × 45mm

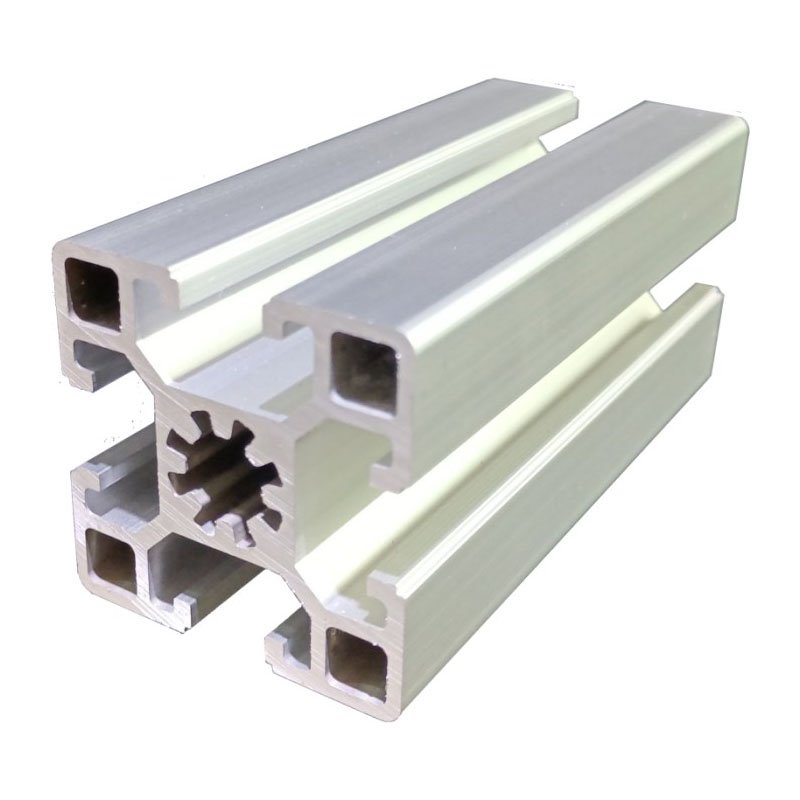

E&I-10-4545 T-slot aluminum profile, slot width 10mm, specification 45mm×45mm, made of high-strength aluminum alloy material, anodized, the surface has strong corrosion resistance and wear resistance, ensuring that the profile always maintains excellent performance during long-term use. The design of this profile focuses on structural stability and can withstand large loads. It is very suitable for use in automation equipment brackets, industrial equipment frames, mechanical equipment supports and other fields.
E&I-10-4545 adopts modular design, which makes it highly flexible in engineering applications and can be freely combined and customized as needed. Whether in automated assembly lines, electromechanical equipment brackets, or in the construction of industrial guardrails and equipment frames, E&I-10-4545 can provide stable and reliable support. At the same time, this profile has excellent processability and economy, and can be finely processed according to different industrial needs to meet diverse project requirements.
In addition, E&I-10-4545 T-slot aluminum profile has good thermal conductivity and fatigue resistance, and can operate stably under high-frequency and high-load working environments. It is an indispensable basic material in modern industrial and mechanical equipment.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-10-4545R |  |
 |
1.69kg/m | Ix:10.76cm4 Iy:10.76cm4 | Wx:4.78cm3 Wy:4.78cm3 |
| E&I-10-4545RQ |  |
 |
1.60kg/m | Ix:9.99cm4 Iy:9.99cm4 | Wx:4.44cm3 Wy:4.44cm3 |
| E&I-10-4545W |  |
 |
2.22kg/m | Ix:15.02cm4 Iy:15.14cm4 | Wx:6.68cm3 Wy:6.72cm3 |
| E&I-10-4545L |  |
 |
1.51kg/m | Ix:10.85cm4 Iy:10.85cm4 | Wx:4.82cm3 Wy:4.82cm3 |

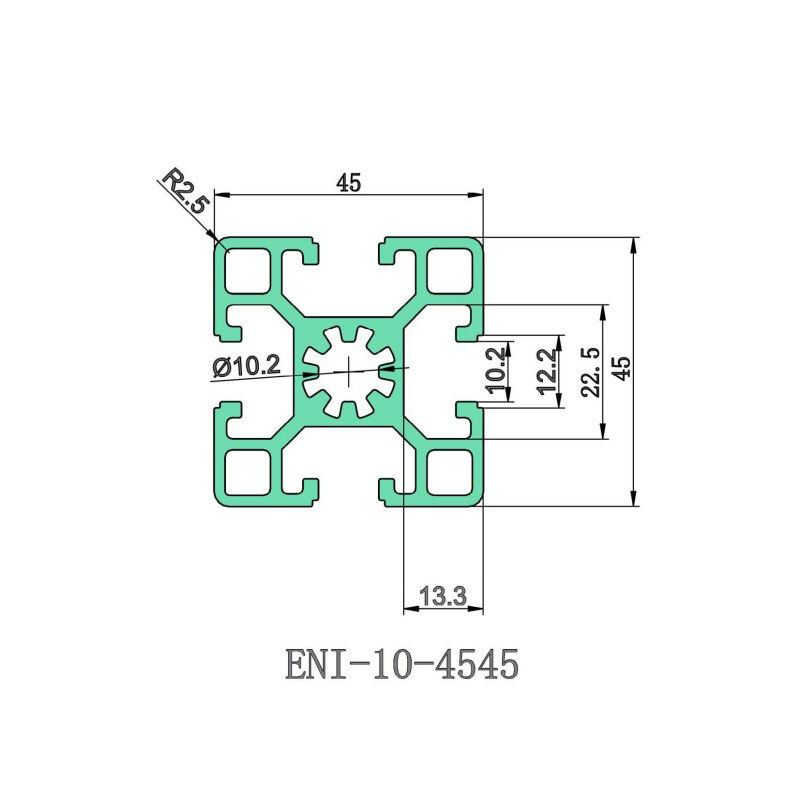

| E&I-10-4545 |  |
 |
1.75kg/m | Ix:12.66cm4 Iy:12.66cm4 | Wx:5.63cm3 Wy:5.63cm3 |
| E&I-10-4560 |  |
 |
2.43kg/m | Ix:17.00cm4 Iy:28.73cm4 | Wx:7.6cm3 Wy:9.58cm3 |
| E&I-10-4590 |  |
 |
3.65kg/m | Ix:25.20cm4 Iy:107.46cm4 | Wx:11.2cm3 Wy:23.88cm3 |
| E&I-10-4590W |  |
 |
3.92kg/m | Ix:28.94cm4 Iy:110.96cm4 | Wx:12.86cm3 Wy:24.66cm3 |
